GD400B

    Air Rate: 1200 - 4800 bps

    RF Output Power: 7.5 W

    Frequency: 400 - 470MHz

    Dimensions:125x76x34mm

    • Features
    • Specifications

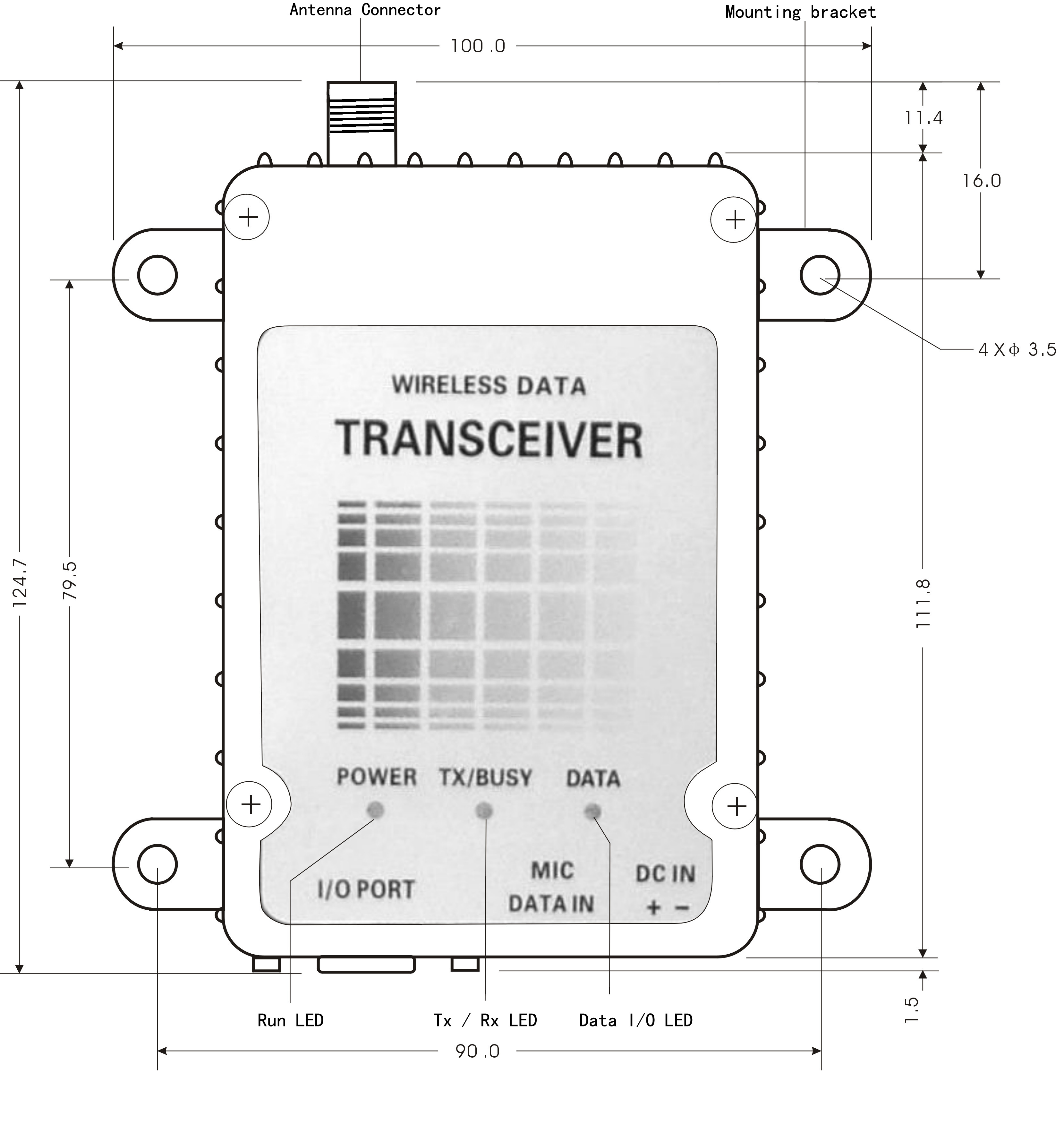

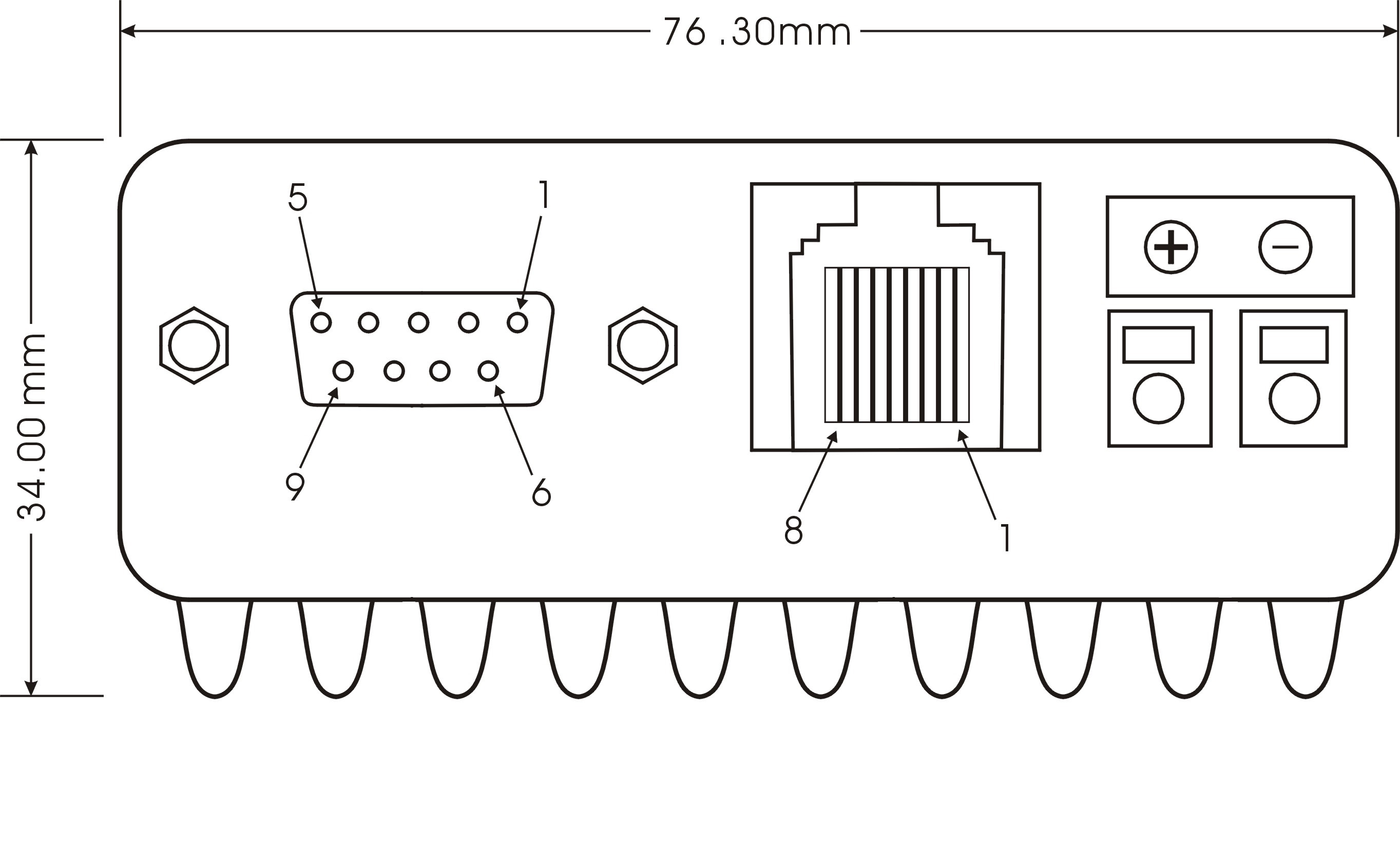

    • Dimensions
    • Resources
    • Accessories
    • Similar Products
    A small size wireless data transceiver operating at 400 MHz frequency band with programmable air rate of 4800, 2400 and 1200 bps. Maximum RF output power is 7.5 watts and can be programmed from 7.5 watts down to 1 watt with five levels. It is easy to integrate for system integrator.

    ◆ General

    -Frequency Range -400 - 430MHz, 450 - 470MHz
    -Channel Capacity -60
    -Channel Spacing -25KHz
    -Frequency Stability -±2.0ppm (-40~+70℃)
    -Operating Voltage -DC 11V to 14V ( Typical 12V )
    -Current Drain -Standby:  <80mA

    -Receive:  <100mA

    -Transmit @ 7.5W:  <1.8A @12V power supply

    -Transmit @ 1.5W:  <0.9A @12V power supply

    -Antenna Impedance -50 ohm unbalanced
    -Dimensions (WxHxD) -125mmx76mmx34mm
    -Weight

    -370g

    -Operating Temperature

    --40℃ - +70℃


    ◆ Receiver

    -Type of Receiver -Double, super heterodyne
    -Intermediate Freq -45MHz(1st IF), 455KHz(2nd IF)
    -Sensitivity -0.2 μV @12dB SINAD
    -Squelch Sensitivity -0.25uV
    -Adjacent Channel Selectivity -greater than –70dB
    -Spurious and Image Rejection -greater than –70dB
    -Intermodulation -65dB
    -Output Audio Distortion -3% at 1KHz for ±3KHz deviation


    ◆ Transmitter

    -RF Output Power

    -7.5W, 6W, 4W, 2W and 1W, programmable for GD400B-7.5

    -1.5W, 1W, 0.6W, 0.3W and 0.1W, programmable for GD400B -1.5

    -Maximum Frequency Deviation -±5KHz
    -Output  Harmonic -less than –65dB
    -Spurious Emissions -less than 0.25uW (30MHz to 1GHz)
    -Distortion -≤2.5%
    Transmitter Attack Time <5ms


    ◆ Data and Interface
    -Modulation -MSK
    -Air Rate

    -4800, 2400 and 1200, programmable

    -Interface Baud Rate -300 - 38400bps programmable
    -Interface Data Bit -8 or 7 bits programmable
    -Interface Parity Bit -None / Even / Odd programmable
    -Interface Stop Bit -1 bit or 2 bits programmable



    Serial Port Utility is a free communication software for serial port. Serialport Utility makes it more efficient for development of hardware-software application. It can send and receive data in high speed. Data can be viewed in Text, Hex and decimal format. Data can be sent automatically with flexible auto sending rules.


    ◆ Configuration

    1. Power Cord

    2. 232 Interface cables (For RS-232 interface radio modem)  or

    __485 Interface cables (For RS-485 interface radio modem)


    ◆ Options

    1. Antennas

    2. RF Cables

    3. Power Supply

    4. Coaxial Lightning Arrestor

    5. Handset

    6. Programmer

    7. Interface Adapter



    Model

    Frequency Range

    Air Rate

    RF Output Power

    Dimensions

    Current

    GD400B

    400 - 470MHz

    4800/2400/1200bps

    7.5W / 1.5W

    12.5x7.6x3.4cm
