GD230V-E

    Air Rate: 1200 - 4800 bps

    RF Output Power: 25 W

    Frequency: 223 - 235 MHz

    Dimensions:145x109x41mm

    • Features
    • Specifications

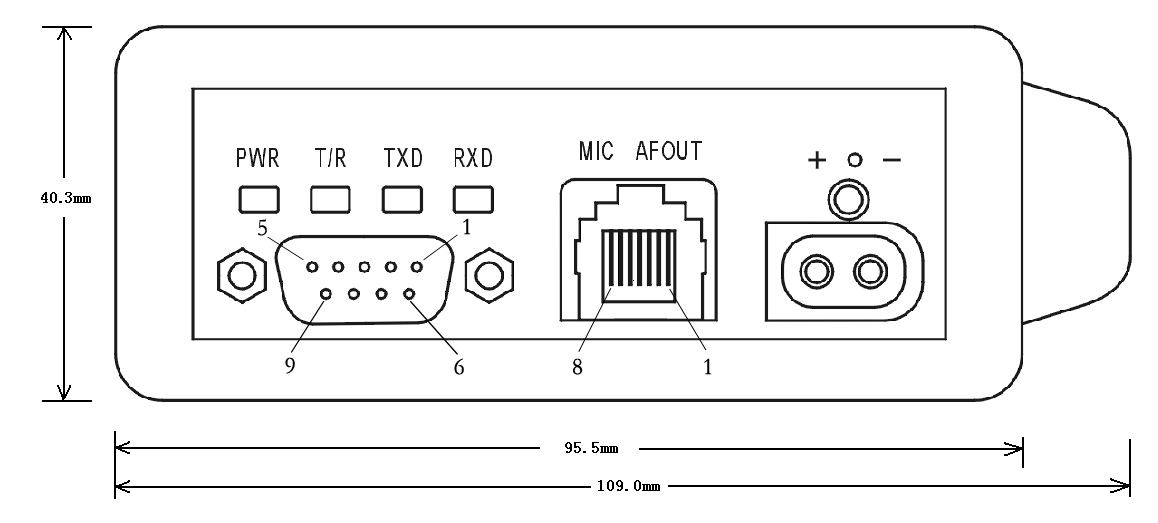

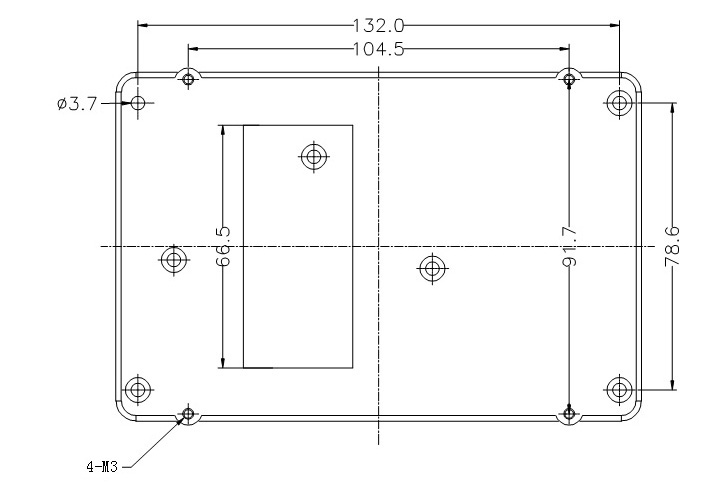

    • Dimensions
    • Resources
    • Accessories
    • Similar Products
    A professional wireless data transceiver operating at 230 MHz frequency band with programmable air rate of 4800, 2400 and 1200 bps. Maximum RF output power is 25 watts and can be programmed from 25 watts down to 5 watts with five levels. It is suitable for long range data communications.

    ◆ General

    _Frequency Range _223 - 235MHz
    _Channel Capacity _60
    _Channel Spacing _25KHz
    _Frequency Stability _±2.0ppm (-40 - +70℃)
    _Operating Voltage _DC 11V to 14V ( Typical 12V )
    _Current Drain _Standby:  <80mA

    _Receive:  <100mA

    _Transmit @ 25W:  <5.0A @12V power supply

    _Transmit @ 8W:   <1.8A @12V power supply

    _Antenna Impedance _50 ohm unbalanced
    _Dimensions (WxHxD) _145mmx109mmx41mm
    _Weight _770g
    _Operating Temperature _40℃ - +70℃


    ◆ Receiver

    _Type of Receiver _Double, super heterodyne
    _Intermediate Freq _45MHz(1st IF), 455KHz(2nd IF)
    _Sensitivity _0.2 μV @12dB SINAD
    _Squelch Sensitivity _0.25uV
    _Adjacent Channel Selectivity _greater than –70dB
    _Spurious and Image Rejection _greater than –70dB
    _Intermodulation _65dB
    _Output Audio Distortion _3% at 1KHz for ±3KHz deviation


    ◆ Transmitter

    _RF Output Power

    _25W, 20W, 15W, 10W and 5W, programmable for GD230V-E25

    _8W, 6W, 4W, 2W and  1W, programmable for GD230V-E8

    _Maximum Frequency Deviation _±5KHz
    _Output  Harmonic _less than –65dB
    _Spurious Emissions _less than 0.25uW (30MHz to 1GHz)
    _Distortion _≤2.5%
    _Transmitter Attack Time _<5ms


    ◆ Data and Interface
    _Modulation _MSK
    _Air Rate

    _4800, 2400 and 1200, programmable

    _Interface Baud Rate _300 - 38400bps programmable
    _Interface Data Bit _8 or 7 bits programmable
    _Interface Parity Bit _None / Even / Odd programmable
    _Interface Stop Bit _1 bit or 2 bits programmable



    Serial Port Utility is a free communication software for serial port. Serialport Utility makes it more efficient for development of hardware-software application. It can send and receive data in high speed. Data can be viewed in Text, Hex and decimal format. Data can be sent automatically with flexible auto sending rules.


    ◆ Configuration

    1. Power Cord

    2. 232 Interface cables (For RS-232 interface radio modem)  or

    __485 Interface cables (For RS-485 interface radio modem)


    ◆ Options

    1. Antennas

    2. RF Cables

    3. Power Supply

    4. Coaxial Lightning Arrestor

    5. Handset

    6. Programmer

    7. Interface Adapter



    Model

    Frequency Range

    Air Rate

    RF Output Power

    Dimensions

    Current

    GD230V-E

    223 - 235MHz

    4800/2400/1200bps

    25W / 8W

    14.5x10.9x4.1cm
