GD230DUP


    GD230DUP

    Frequency: 220 - 240MHz

    Air Rate: 1200 - 19200bps

    RF Output Power: 25W - 1.5W

    Dimensions: 34 X 48 X 15 cm


    • Features
    • Specifications

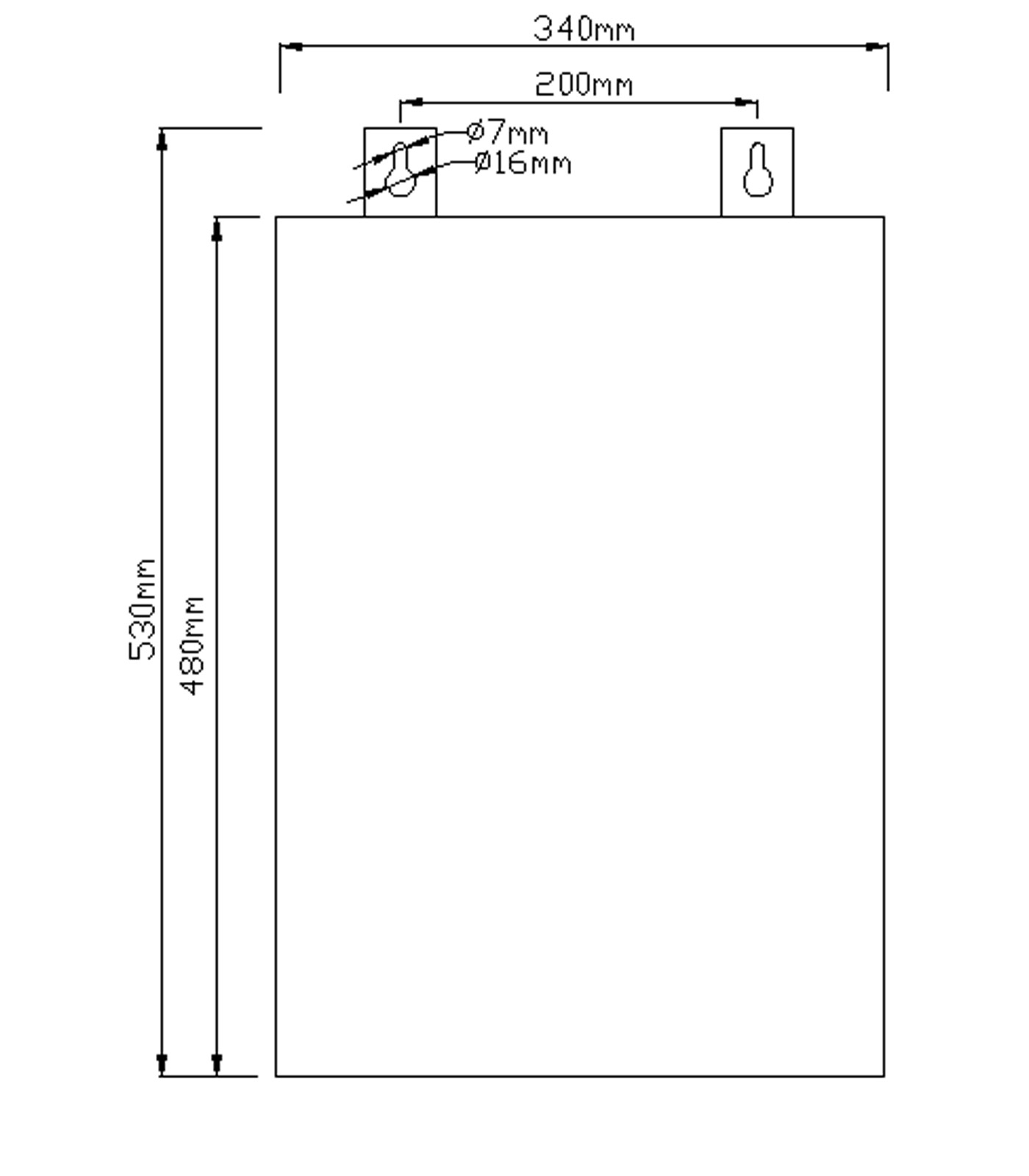

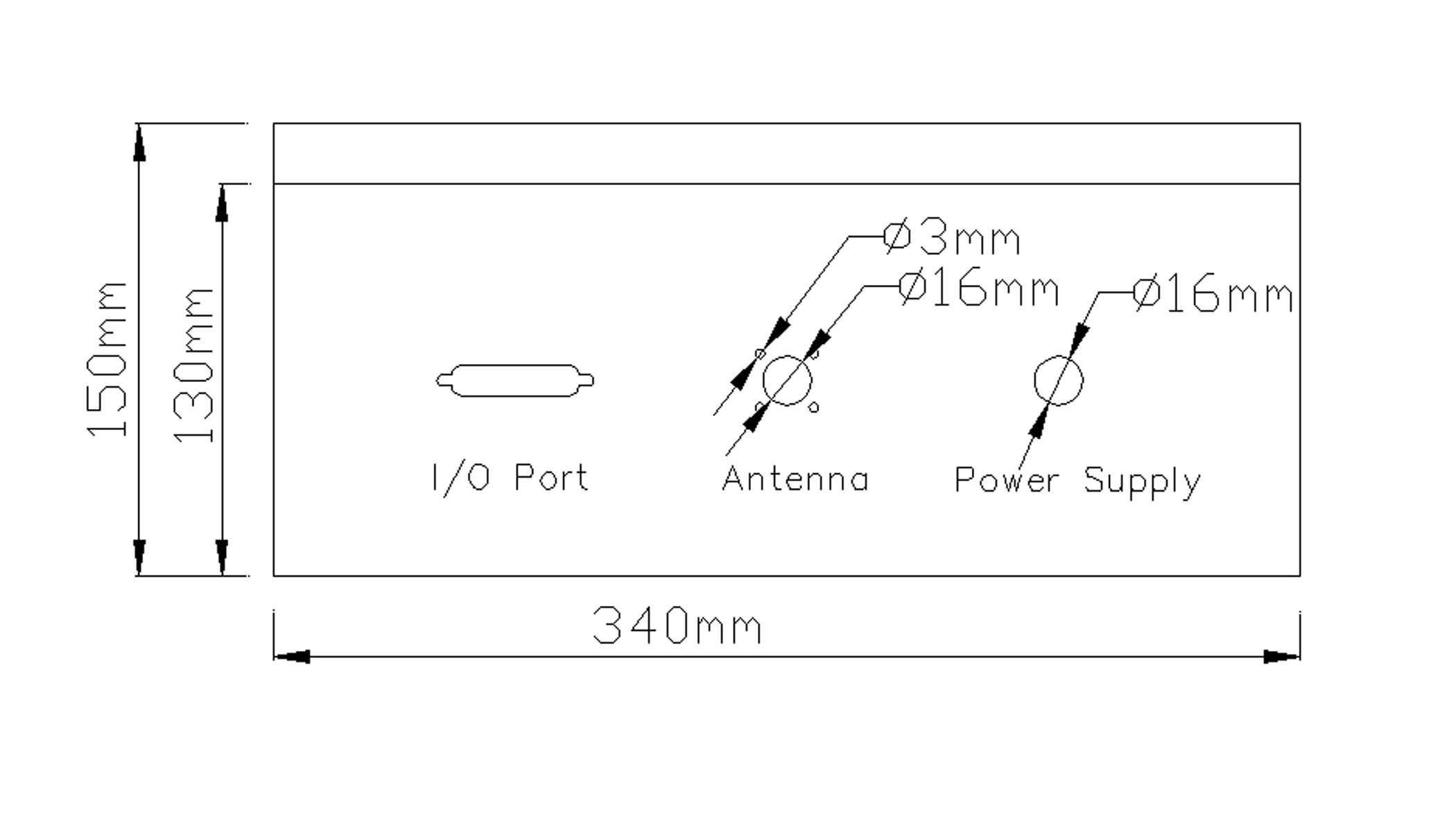

    • Dimensions
    • Resources
    • Accessories
    • Similar Products

    _

    General

    _Frequency Range

    _223 - 235MHz

    _Channel Capacity

    _60

    _Channel Spacing

    _25KHz

    _Frequency Stability

    _±2.0ppm (-40 to +70°C)

    _Operating Voltage

    _DC 11V to 14V ( Typical 12V )

    _Current Drain

    _Standby:  <180mA

    _Transmit @ 42dBm:  <5.0A @ 12V power supply

    _Transmit @ 37dBm:  <1.8A @ 12V power supply

    _Antenna Impedance

    _50 ohm unbalanced

    _Dimensions (WxHxD)

    _340mmx480mmx150mm

    _Operating Temperature

    _-40°C - +70°C


    Receiver

    _Sensitivity

    _0.25 μV @12dB SINAD

    _Squelch Sensitivity

    _0.25uV

    _Adjacent Channel Selectivity

    _greater than –70dB

    _Spurious and Image Rejection

    _greater than –70dB

    _Intermodulation

    _65dB

    _Output Audio Distortion

    _3% at 1KHz for ±3KHz deviation


    Transmitter

    _RF Output Power

    _levels 5 power, programmable for 42dBm

    _levels 5 power, programmable for 37dBm

    _Maximum Frequency Deviation

    _±5KHz

    _Output  Harmonic

    _less than –65dB

    _Spurious Emissions

    _less than 0.25uW (30MHz to 1GHz)

    _Distortion

    _≤2.5


    Data and Interface

    _Modulation

    _GMSK MSK or 4-FSK selectable

    _Air Rate

    _192009600480024001200bps selectable


    Serial Port Utility is a free communication software for serial port. Serialport Utility makes it more efficient for development of hardware-software application. It can send and receive data in high speed. Data can be viewed in Text, Hex and decimal format. Data can be sent automatically with flexible auto sending rules.


    Configuration

    Power Cord


    Options

    1. Antennas

    2. RF Cables

    3. Coaxial Lightning Arrestor

    4. Handset

    5. Programmer



    Model

    Frequency Range

    Current

    GD230DUP

    223 - 235MHz
