GD400DUP
GD400DUP
Frequency: 400 - 470MHz
Air Rate: 1200 - 19200bps
RF Output Power: 25W - 1.5W
Dimensions: 34 X 48 X 15 cm
- Features
- Specifications
- Dimensions
- Resources
- Accessories
- Similar Products
__
◆ General
|
_Frequency Range |
_400 - 470MHz |
|
_Channel Capacity |
_60 |
|
_Channel Spacing |
_25KHz |
|
_Frequency Stability |
_±2.0ppm (-40 to +70°C) |
|
_Operating Voltage |
_DC 11V to 14V ( Typical 12V ) |
|
_Current Drain |
_Standby: <180mA _Transmit @ 42dBm: <5.5A @ 12V power supply _Transmit @ 37dBm: <2.0A @ 12V power supply |
|
_Antenna Impedance |
_50 ohm unbalanced |
|

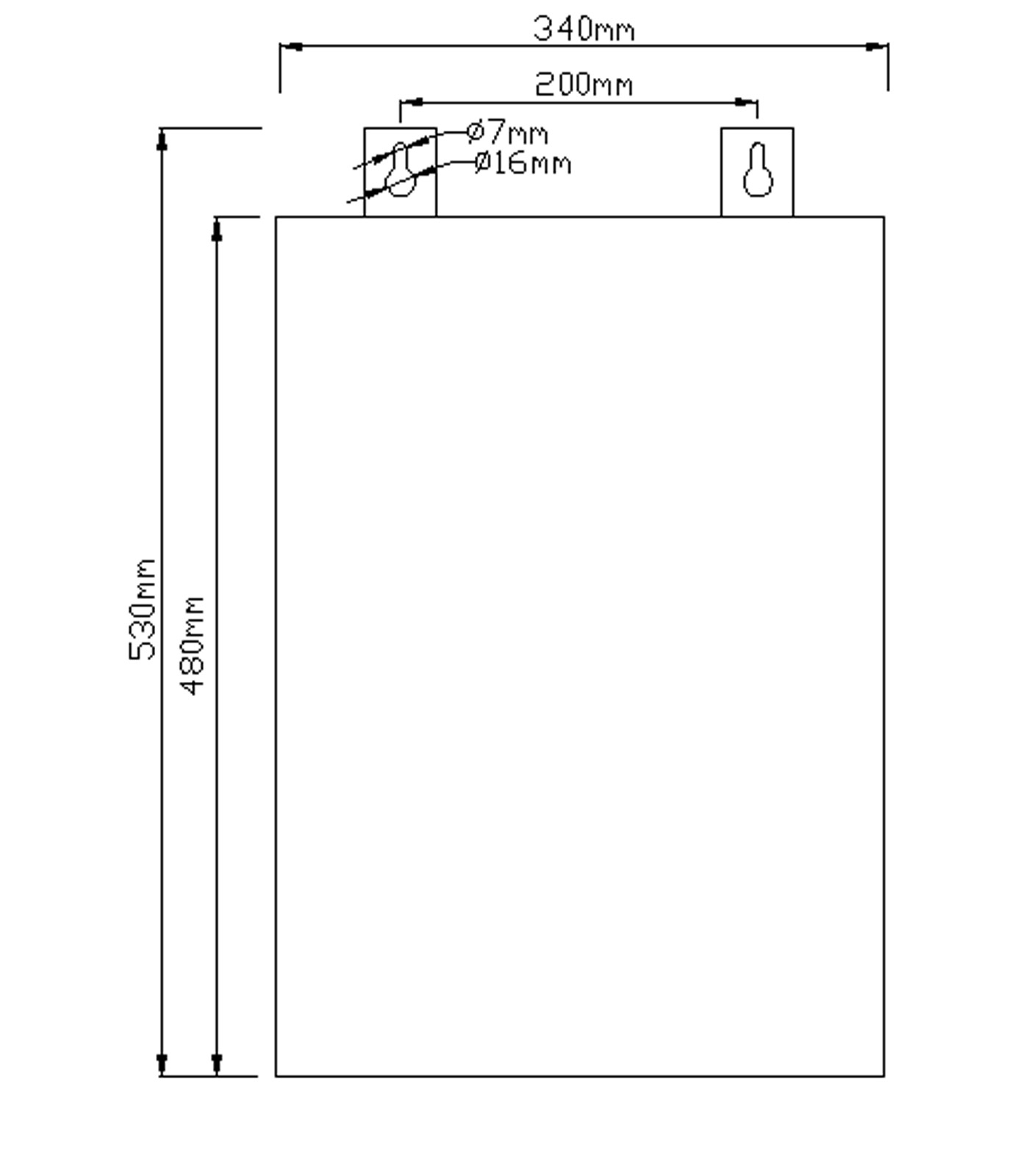

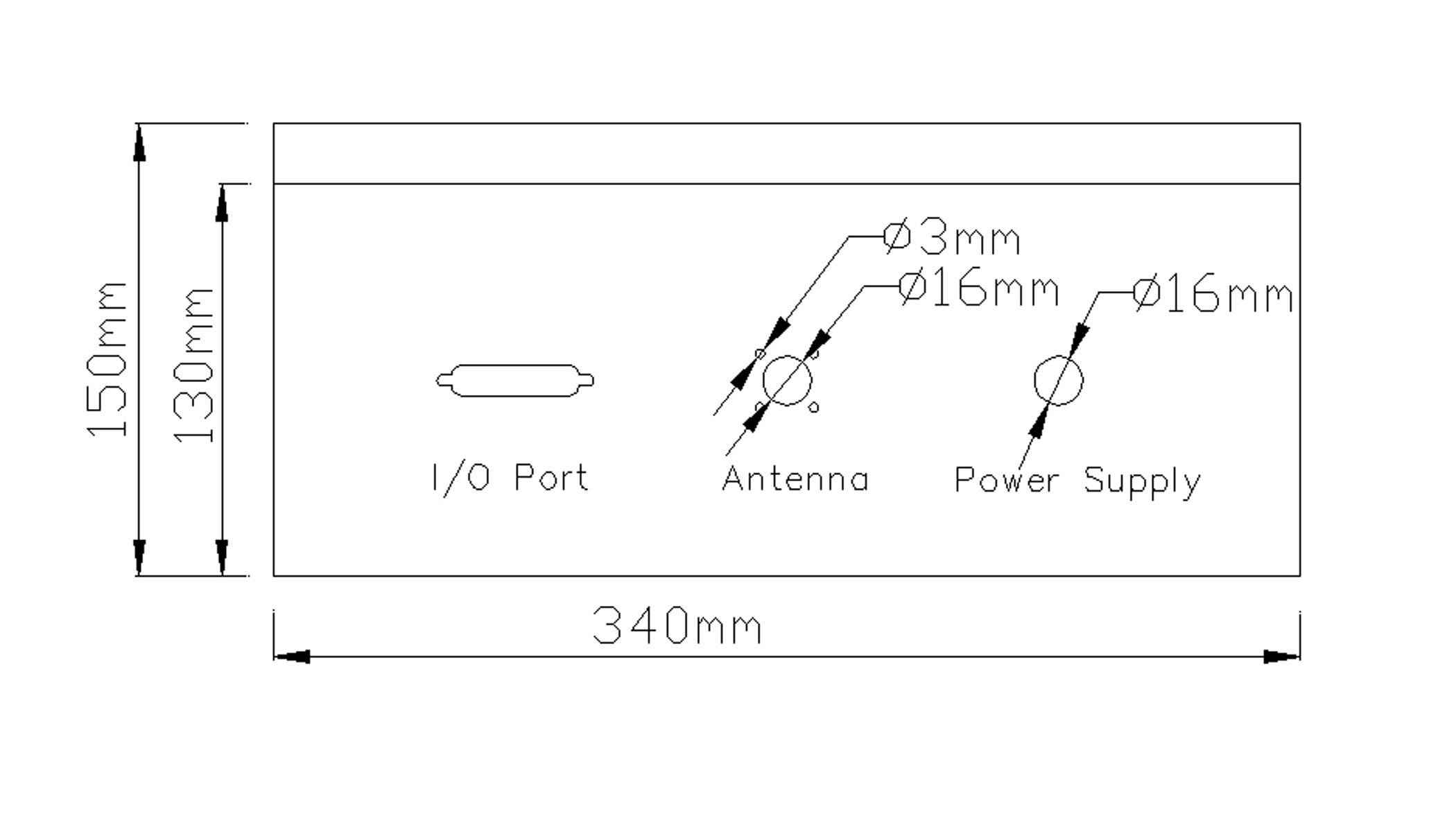

_Dimensions (WxHxD) |
_340mmx480mmx150mm |
|
_Operating Temperature |
_-40°C - +70°C |
◆ Receiver
|
_Sensitivity |
_0.25 μV @12dB SINAD |
|
_Squelch Sensitivity |
_0.25uV |
|
_Adjacent Channel Selectivity |
_greater than –70dB |
|
_Spurious and Image Rejection |
_greater than –70dB |
|
_Intermodulation |
_65dB |
|
_Output Audio Distortion |
_3% at 1KHz for ±3KHz deviation |
◆ Transmitter
|
_RF Output Power |
_levels 5 power, programmable for 42dBm _levels 5 power, programmable for 37dBm |
|
_Maximum Frequency Deviation |
_±5KHz |
|
_Output Harmonic |
_less than –65dB |
|
_Spurious Emissions |
_less than 0.25uW (30MHz to 1GHz) |
|
_Distortion |
_≤2.5％ |
◆ Data and Interface
|
_Modulation |
_GMSK MSK or 4-FSK selectable |
|
_Air Rate |
_19200、9600、4800、2400、1200bps selectable |
